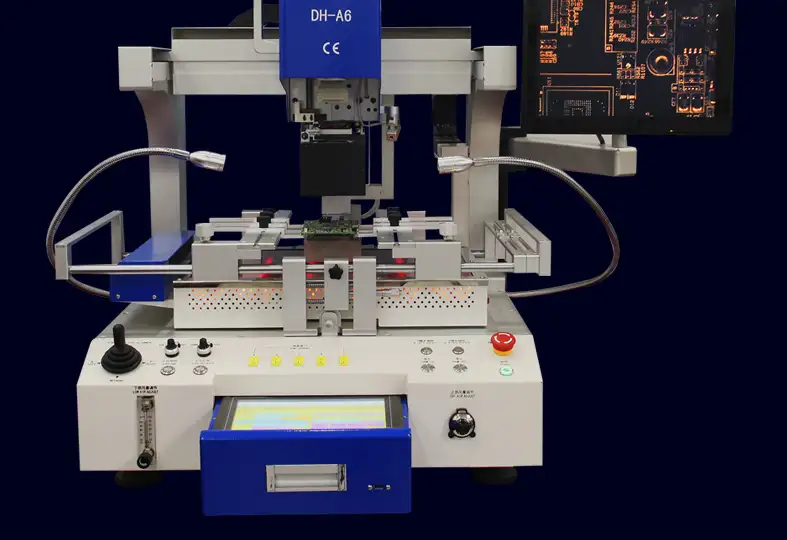

DH-A6 Automatic BGA rework station

1. Fully automatic BGA rework station with moveable upper-lower heaters

2. Temperature profile analysis

3. Carbon fiber heating for IR preheating area

4. FBGA,QFN,LGA,MLF GA,QFN,DFN,FBGA,BGA,PBGA etc. can be reworked.


Parameter of BGA rework station


BGA rework stations:In the intricate world of electronics manufacturing and repair, the Ball Grid Array (BGA) has become a cornerstone for high-density integrated circuits. Consequently, the BGA rework station has evolved into an indispensable tool for any serious technician or engineer. This sophisticated equipment is specifically designed for the precise removal and replacement of BGA components, offering a suite of advantages that are unattainable with traditional soldering tools. The capabilities of a modern BGA rework station extend far beyond simple repair, making it vital for prototyping, troubleshooting, and low-volume production.

The foremost advantage of a professional BGA rework station is its unparalleled precision and control. Unlike a standard heat gun, which offers coarse and unpredictable airflow, a true BGA rework station provides exacting command over critical parameters. Technicians can digitally set and monitor temperature profiles, airflow velocity, and heating duration with a high degree of accuracy. This precise thermal management is absolutely critical for successfully reflowing solder balls beneath a component without damaging the sensitive BGA chip itself or the surrounding PCB substrate. The controlled environment provided by a dedicated BGA rework station prevents thermal shock and ensures a successful, reliable reflow process every time.

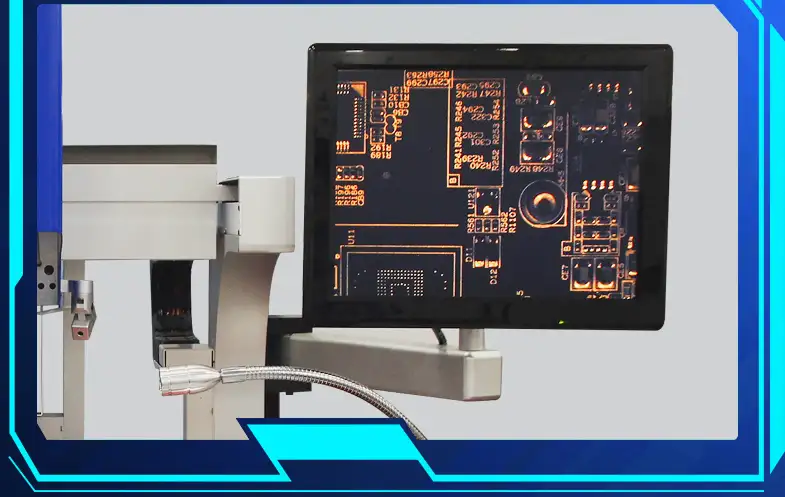

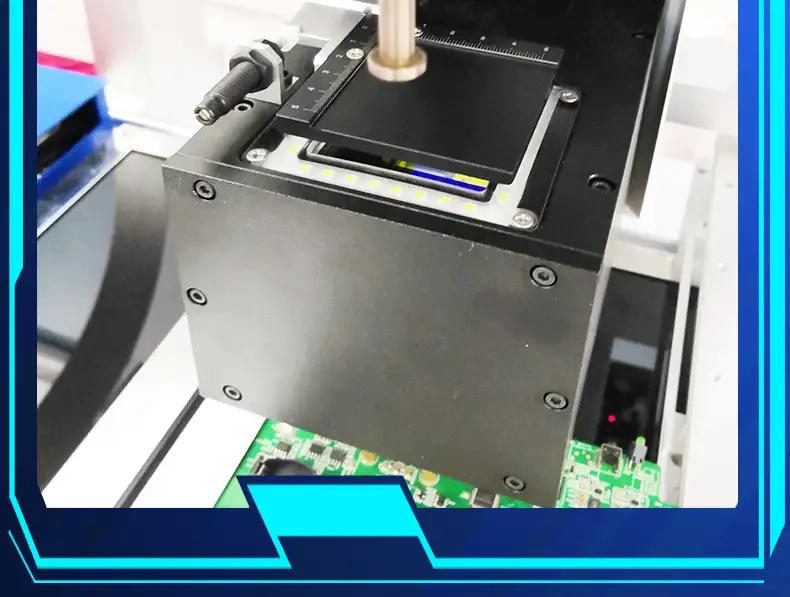

Another significant benefit is the integration of vision alignment systems. High-quality BGA rework stations are equipped with top and bottom cameras with microscopic capabilities. This allows the operator to perfectly align the new BGA component with the pad pattern on the board before the reflow process begins. Proper alignment is paramount, as even a fractional misplacement can result in a failed connection and a non-functional board. The visual guidance system transforms a daunting task into a manageable one, drastically increasing first-pass success rates and reducing costly errors and board scrap.
